Pump suction lines
The inlet side of centrifugal and self-priming dewatering pumps, where vacuum would collapse ordinary hose.
Suction Hose in UAE

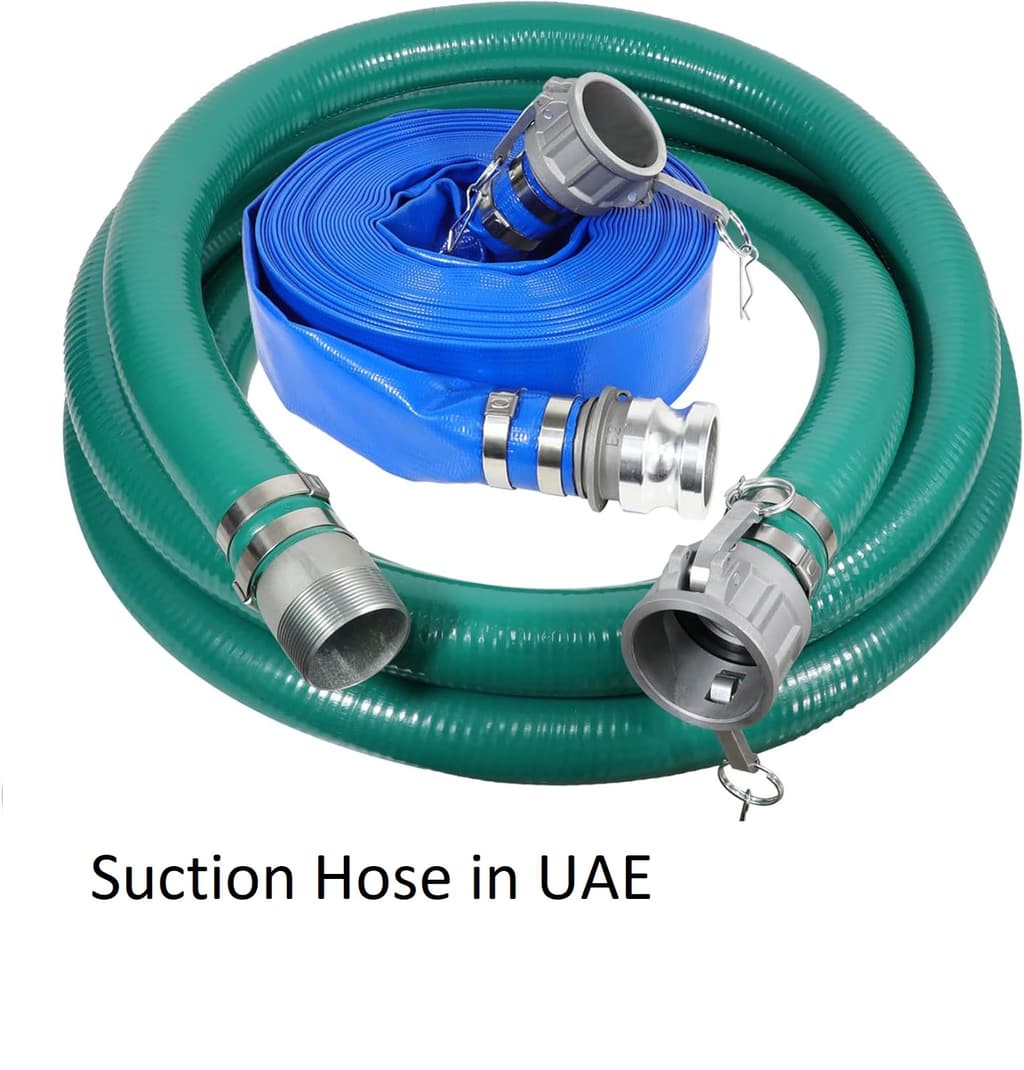

Suction hose has to hold its shape under vacuum — a discharge hose collapses flat the moment a pump pulls on it. Apex supplies reinforced suction hose in the UAE rated to 10 bar in 3, 4 and 6 inch bore.
Suction Hose in UAE quick facts
Suction Hose in UAE — quick facts
| Working pressure | 10 bar |
|---|---|
| Bore sizes | 3", 4", 6" |
| Roll lengths | 40 m (3" and 4"), 30 m (6") |
| Origin | Italy |
| Fittings | Miller type and Bauer type couplings, galvanised |
| Application | Pump suction lines, slurry and liquid transfer |
Overview
Reinforced so it cannot collapse
Suction hose in the UAE is used on the inlet side of a pump, where the pressure inside the hose is below atmospheric. Unreinforced hose flattens instantly under that load, which is why suction hose carries a helical reinforcement and a much heavier wall than discharge hose.
Apex supplies heavy-duty black suction hose rated to 10 bar working pressure in 3, 4 and 6 inch bore, of Italian manufacture, in 40 metre rolls for the smaller sizes and 30 metre rolls for 6 inch.
Galvanised Miller type and Bauer type fittings are stocked alongside — male and female coupling sets, 90° and 45° elbows, Y and T joints, end caps and O-rings — so a complete suction line can be made up from one supplier.
Specifications
Technical data
Suction hose range
| Description | Size | Packing | Origin |
|---|---|---|---|
| Suction hose, W.P. 10 bar | 3" | 40 m roll | Italy |
| Suction hose, W.P. 10 bar | 4" | 40 m roll | Italy |
| Suction hose, W.P. 10 bar | 6" | 30 m roll | Italy |
Fittings stocked — Miller and Bauer type, galvanised
| Fitting | Sizes |
|---|---|
| Male + female coupling set | 3", 4", 6", 8" |
| 90° elbow | 3", 4", 6", 8" |
| 45° elbow | 3", 4", 6", 8" |
| Y joint | 3", 4", 6", 8" |
| T joint | 3", 4", 6", 8" |
| Male + female end cap set | 3", 4", 6", 8" |
| O-ring | 3", 4", 6", 8" |
Applications
Where it is used
Wellpoint header connections
Linking the header main to the pump on a wellpoint dewatering system.
Slurry and liquid transfer
Abrasive and solids-laden transfer duties where wall thickness matters.
Questions
Suction Hose in UAE — questions answered
What is the difference between suction hose and layflat hose?
Suction hose is reinforced to resist collapse under vacuum and is used on the inlet side of a pump. Layflat hose has thin, flexible walls that fold flat when empty and is used on the discharge side, where the pressure is positive. Putting layflat on a suction line does not work — it collapses as soon as the pump starts.
What working pressure is Apex suction hose rated to?
10 bar working pressure across the 3, 4 and 6 inch sizes.
What lengths does suction hose come in?
3 inch and 4 inch are supplied in 40 metre rolls; 6 inch is supplied in 30 metre rolls.
Do you supply the couplings as well?
Yes. Galvanised Miller type and Bauer type fittings are stocked from 3 to 8 inch — coupling sets, 90° and 45° elbows, Y and T joints, end caps and O-rings.
