Apex Group

TRADING DIVISION

HYDRAULIC EQUIPMENTS AND ACCESSORIES

We are stockist and dealers of hydraulic jacks and cylinder capacity from 3 ton up to 5000 ton capacity. We do develop customer made jacks/cylinders. The range of pumps includes hand pumps and electric power packs for double acting and single acting cylinders/jacks.

Previous slide
Next slide

SINGLE AND DOUBLE ACTING JACKS LOAD RETURN (APEX JACKS)

** Tilting Saddle provided on all jacks to avoid the eccentric load.

ELECTRIC POWER PACK MODELS

DEWATERING EQUIPMENT SECTION

APEX Centrifugal Dewatering Pump

SPECIFICATION AND PERFORMANCE

AIR COOLED DEUTZ/KIRLOSKAR THREE-CYLINDER DIESEL ENGINE, 34 HP, 2000 RPM, WITH FUEL TANK CAPACITY OF 200 LTR.  Vacuum pump for automatic PRIMING & REPRIMING at 70 CFM. Carbon ceramic special mechanical seal for long life when used for sandy seawater.

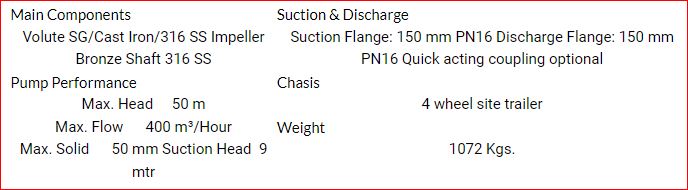

Main Components                                                                          Suction & Discharge

Volute            SG/Cast Iron/316 SS                                               Suction Flange: 150 mm PN16

Impeller         Bronze                                                                        Discharge Flange: 150 mm PN16

Shaft               316 SS                                                                       Quick acting coupling optional

Pump Performance                                                                         Chasis

Max. Head     50 m                                                                           4 wheel site trailer.

Max. Flow      400 m³/Hour

Max. Solid     50 mm                                                                       Weight

Suction Head 9 mtr.                                                                        1072 Kgs.

APEX PISTON TYPE SELF PRIMINGDEWATERING PUMP

A.OPEN TYPE PUMP

B.CANOPY TYPE PUMP

SPECIFICATION AND PERFORMANCE

AIR COOLED ZEN TWO-CYLINDER DIESEL ENGINE, 15 HP, 1800 RPM, WITH FUEL TANK CAPACITY OF 100 LTR.

Main Components                                                        Suction & Discharge

Liner               316 SS                                                     Suction Flange: 150 mm PN16

Piston Collar   Leather                                                  Discharge Flange: 150 mm PN16

Shaft               316 SS                                                    Quick acting coupling optional

Pump Performance                                                      Chasis

Max. Head      50 m                                                       Skid Mounted.

Max. Flow       300 m³/Hour

Max. Solid       50 mm                                                   Weight

Suction Head  7 mtr.                                                     1175 Kgs.

** SPECIALLY DESIGNED PISTON PUMPS WITH CANOPY FOR SOUNDPROOF OPERATION.

SUBMERRSIBLE TYPE PUMPS

We are the Stockiest for the Single Stage & Multistage Submersible Pumps available in 3” & 6” Head Dia.

SPECIFICATION & PERFORMANCE

DEWATERING ACCESSORIES

We do keep stock of complete dewatering accessories for “Miller Type” & “Bauer Type

Product range covers size from 3” to 8”.

Miller Type/Bauer Type

  • 3” M+F Coupling set, Gal. 6” M+F Coupling set, Gal.
  • 3” 90° Elbow, Gal 6” 90° Elbow, Gal
  • 3” 45° Elbow, Gal 6” 45° Elbow, Gal
  • 3” Y – Joint, Gal 6” Y – Joint, Gal
  • 3” T- Joint, Gal 6” T- Joint, Gal
  • 3” M+F End cap set 6” M+F End cap set
  • 3” O-ring 6” O-ring
  • 4” M+F coupling set, Gal 8” M+F coupling set, Gal
  • 4” 90° Elbow, Gal 8” 90° Elbow, Gal
  • 4” 45° Elbow, Gal 8” 45° Elbow, Gal
  • 4” Y- Joint, Gal 8” Y- Joint, Gal
  • 4” T – Joint, Gal 8” T – Joint, Gal
  • 4” M+F End cap set 8” M+F End cap set
  • 4” O-ring 8” O-ring
  • 4” x 6m Discharge pipe w/o Mushrooms with end coupling, Gal, W.T. 2.2 mm
  • 6” x 6m Header pipe with mushroom with end coupling, Gal, W.T. 2.2 mm
  • 6” x 6 m Discharge pipe w/o mushroom with end coupling, Gal, W.T. 2.2 mm
Previous slide
Next slide

SUCTION AND DISCHARGE HOSES

Suction hose in sizes 3”,4” & 6”

Discharge Hose (Heavy Duty)

GENERAL OTHER ACCESSORIES FOR DEWATERING OPERATIONS

  • 3” Brass non-return valves
  • 3” King nipples
  • 6” Brass Gate Valves
  • 6” Pipe menders
  • 8” Pipe menders
  • 3” PVC connectors
  • Waterproof electrical joints
  • Waterproof cable 6mm 4 core full gauge
  • Jubliee Clips 2”, 3”, 4”, 6” and 8”
  • Denso tape
  • Strainer Gal.
  • Swing hose 50 mm dia
Previous slide
Next slide

ANCHORING ACCESSORIES/PRESTRESSING/ PILING EQUIPMENTS

Strand Anchors (Approved by Dubai Central Laboratory):

General Information:

The anchors are structural elements, which are capable of transmitting stress to the ground by means of structures and anchoring devices.

These consist in a particular application of pre-stress in the field of civil engineering and their most common applications can be found in the anchoring of face walls.

P.C. Strand wire – ASTM A416/A416M-98 grade 270 with below specifications:

Chemical composition(%)

Packing Coil Reel-less coils of 2.7 MT to 3.5 MT (ID / OD / Width) 800 / 1300 / 750 mm

ANCHORING ACCESSORIES

HDPE PIPE AND LDPE PIPES FOR ALL SIZES

ROTARY DRIVE CHAINS

CHAIN LINK MODELS

ULTRA SONIC TUBES

ULTRA SONIC TUBES

MULTI STRESSING JACK

MONO STRESSING JACK

LOAD CELLS AND READ OUT UNIT

We are stockist and distributor of load cells from German, maximum capacity for load cells available is 1000 ton. Detail for the same with readout unit is as below:

READOUT UNIT

REBAR COUPLERS SECTION

Swage Machine

Rebar crimping machine with power pack unit
